Electric motor

Electric Motors

Definition
Electric motor is a machine which converts electrical power into mechanical power.when supply is given on  the stator, a magnetic field is set-up on the stator. when conductor insert on them(Rotor).it experience an e.m.f or force hence rotor is start rotating. and his direction of rotating is examined by fleming left's hand rule.

Construction

Generally motor has two main parts:-

1. Stator-stator is stationary  part on which supply is given and field is generated.

1. Rotor-rotor is rotating part where flux is generated due to field which is generating on stator.

Working principle of electric motors

When a current carrying conductor cuts a rotating magnetic field  it experiences a mechanical force whose direction is given by Fleming's Left-hand rule and whose magnitude is given by

                     Force,F = B I l newton
                       Where B is the magnetic field in weber/m2.
                                 I is the current in amperes and
                                 l is the length of the coil in meter.
The force, current and the magnetic field are all in different directions.

Simplification-when supply is given on  the stator, a magnetic field is set-up on the stator. when conductor insert on them(Rotor).it experience an e.m.f or force hence rotor is start rotating. and his direction of rotating is examined by fleming left's hand rule.

Fleming's left-hand rule- It is used for electric motors, whileFleming's right-hand rule is used for electric generators. ... In an electric motor, the electric current and magnetic field exist (which are the causes), and they lead to the force that creates the motion (which is the effect), and so the left hand rule is used.

History of electric motor

Perhaps the first electric motors were simple electrostatic devices created by the Scottish monk Andrew Gordon in the 1740s. The theoretical principle behind production of mechanical force by the interactions of an electric current and a magnetic field, Ampère's force law, was discovered later by André-Marie Ampère in 1820. The conversion of electrical energy into mechanical energy by electromagnetic means was demonstrated by the English scientist Michael Faraday in 1821. A free-hanging wire was dipped into a pool of mercury, on which a permanent magnet (PM) was placed. When a current was passed through the wire, the wire rotated around the magnet, showing that the current gave rise to a close circular magnetic field around the wire. This motor is often demonstrated in physics experiments, brine substituting for toxic mercury. Though Barlow's wheel was an early refinement to this Faraday demonstration, these and similar homopolar motors were to remain unsuited to practical application until late in the century.

In 1827, Hungrian physicist Anyos jedlik started experimenting with electromagnetic coils. After Jedlik solved the technical problems of the continuous rotation with the invention of the commutator, he called his early devices "electromagnetic self-rotors". Although they were used only for instructional purposes, in 1828 Jedlik demonstrated the first device to contain the three main components of practical DC motors: the stator, rotor and commutator. The device employed no permanent magnets, as the magnetic fields of both the stationary and revolving components were produced solely by the currents flowing through their windings.

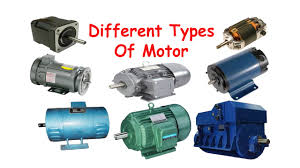

Classification of motors

As you already shown above that gnerally there are three types of motors:-

• Ac motors
• Dc motors
• Special type motors(servo motor,stepper motor)

Now we further classified these motor:-

Ac motors

Single Phase Induction Motor

Single phase power system is widely used as compared to three phase system for domestic purpose, commercial purpose and to some extent in industrial purpose. As the single phase system is more economical and the power requirement in most of the houses, shops, offices are small, which can be easily met by single phase system. The single phase motors are simple in construction, cheap in cost, reliable and easy to repair and maintain. Due to all these advantages the single phase motor finds its application in vacuum cleaner, fans, washing machine, centrifugal pump, blowers, washing machine, small toys etc.

Construction of Single Phase Induction Motor

Like any other electrical motor asynchronous motor or single phase motor also have two main parts namely rotor and stator.

Stator:

As its name indicates stator is a stationary part of induction motor. A single phase AC supply is given to the stator of single phase induction motor.

Rotor:

The rotor is a rotating part of induction motor. The rotor is connected to the mechanical load through the shaft. The rotor in single phase induction motor is of squirrel cage rotor type.The construction of single phase induction motor is almost similar to the squirrel cage three phase motor except that in case of asynchronous motor the stator have two windings instead of one as compare to the single stator winding in three phase induction motor
The stator of the single phase induction motor has laminated stamping to reduce eddy current losses on its periphery. The slots are provided on its stamping to carry stator or main winding. In order to reduce the hysteresis losses, stamping are made up of silicon steel. When the stator winding is given a single phase AC supply, the magnetic field is produced and the motor rotates at a speed slightly less than the synchronous speed N_swhich is given byWhere,
f = supply voltage frequency,
P = No. of poles of the motor.
The construction of the stator of asynchronous motor is similar to that of three phase induction motor except there are two dissimilarity in the winding part of the single phase induction motor.

1. Firstly the single phase induction motors are mostly provided with concentric coils. As the number of turns per coil can be easily adjusted with the help of concentric coils, the mmf distribution is almost sinusoidal.

1. Except for shaded pole motor, the asynchronous motor has two stator windings namely the main winding and the auxiliary winding. These two windings are placed in space quadrature with respect to each other

Working principle

NOTE: We know that for the working of any electrical motor whether its AC or DC motor, we require two fluxes as, the interaction of these two fluxes produced the required torque, which is desired parameter for any motor to rotate.we do not discuss about the torque on this post. to know about electric torque please read my other post on torque.
When single phase AC supply is given to the stator winding of single phase induction motor, the alternating current starts flowing through the stator or main winding. This alternating current produces an alternating flux called main flux. This main flux also links with the rotor conductors and hence cut the rotor conductors. According to the Faraday’s law of electromagnetic induction, emf gets induced in the rotor. As the rotor circuit is closed one so, the current starts flowing in the rotor. This current is called the rotor current. This rotor current produces its own flux called rotor flux. Since this flux is produced due to induction principle so, the motor working on this principle got its name as induction motor. Now there are two fluxes one is main flux and another is called rotor flux. These two fluxes produce the desired torque which is required by the motor to rotate.

Why Single Phase Induction Motor is not Self Starting?

According to double field revolving theory, any alternating quantity can be resolved into two components, each component have magnitude equal to the half of the maximum magnitude of the alternating quantity and both these component rotates in opposite direction to each other. For example - a flux, φ can be resolved into two components

Each of these components rotates in opposite direction i. e if one φ_m / 2 is rotating in clockwise direction then the other φ_m / 2 rotates in anticlockwise direction.

When a single phase AC supply is given to the stator winding of single phase induction motor, it produces its flux of magnitude, φ_m. According to the double field revolving theory, this alternating flux, φ_m is divided into two components of magnitude φ_m /2. Each of these components will rotate in opposite direction, with the synchronous speed, N_s. Let us call these two components of flux as forward component of flux, φ_f and backward component of flux, φ_b. The resultant of these two component of flux at any instant of time, gives the value of instantaneous stator flux at that particular instant.Now at starting, both the forward and backward components of flux are exactly opposite to each other. Also both of these components of flux are equal in magnitude. So, they cancel each other and hence the net torque experienced by the rotor at starting is zero. So, the single phase induction motors are not self starting motors.

Now at starting, both the forward and backward components of flux are exactly opposite to each other. Also both of these components of flux are equal in magnitude. So, they cancel each other and hence the net torque experienced by the rotor at starting is zero. So, the single phase induction motors are not self starting motors.

Now at starting, both the forward and backward components of flux are exactly opposite to each other. Also both of these components of flux are equal in magnitude. So, they cancel each other and hence the net torque experienced by the rotor at starting is zero. So, the single phase induction motors are not self starting motors.

Now at starting, both the forward and backward components of flux are exactly opposite to each other. Also both of these components of flux are equal in magnitude. So, they cancel each other and hence the net torque experienced by the rotor at starting is zero. So, the single phase induction motors are not self starting motors.

Now at starting, both the forward and backward components of flux are exactly opposite to each other. Also both of these components of flux are equal in magnitude. So, they cancel each other and hence the net torque experienced by the rotor at starting is zero. So, the single phase induction motors are not self starting motors.

Methods for Making Single Phase Induction as Self Starting Motor

From the above topic we can easily conclude that the single phase induction motors are not self starting because the produced stator flux is alternating in nature and at the starting the two components of this flux cancel each other and hence there is no net torque. The solution to this problem is that if the stator flux is made rotating type, rather than alternating type, which rotates in one particular direction only. Then the induction motor will become self starting. Now for producing this rotating magnetic field we require two alternating flux, having some phase difference angle between them. When these two fluxes interact with each other they will produce a resultant flux. This resultant flux is rotating in nature and rotates in space in one particular direction only. Once the motor starts running, the additional flux can be removed. The motor will continue to run under the influence of the main flux only. Depending upon the methods for making asynchronous motor as Self Starting Motor, there are mainly four types of single phase induction motor namely,
1. Split phase induction motor,
2. Capacitor start inductor motor,
3. Capacitor start capacitor run induction motor,
4. Shaded pole induction motor.
5. Permanent split capacitor motor or single value capacitor motor.

Comparison between Single Phase and Three Phase Induction Motors

1. Single phase induction motors are simple in construction, reliable and economical for small power rating as compared to three phase induction motors.
2. The electrical power factor of single phase induction motors is low as compared to three phase induction motors.
3. For same size, the single phase induction motors develop about 50% of the output as that of three phase induction motors.
4. The starting torque is also low for asynchronous motors / single phase induction motor.
5. The efficiency of single phase induction motors is less as compare it to the three phase induction motors.
Single phase induction motors are simple, robust, reliable and cheaper for small ratings. They are generally available up to 1 KW rating.


Synchronous motor




Introduction



As the name suggests Synchronous motors are capable of running at constant speed irrespective of the load acting on them. Unlike induction motors where speed of the motor depends upon the torque acting on them, synchronous motors have got constant speed-torque characteristics.
Synchronous motors have got higher efficiency (electrical to mechanical power conversion ratio) than its counterparts. Its efficiency ranges from 90 – 92%.



Synchronous Motor Working Principle

Electrical motor in general is an electro-mechanical device that converts energy from electrical domain to mechanical domain. Based on the type of input we have classified it into single phase and 3 phase motors. Among 3 phase motors, induction motors and synchronous motors are more widely used. When a 3 phase electric conductors are placed in a certain geometrical positions (In certain angle from one another) then an electrical field is generated. Now the rotating magnetic field rotates at a certain speed, that speed is called synchronous speed. Now if an electromagnet is present in this rotating magnetic field, the electromagnet is magnetically locked with this rotating magnetic field and rotates with same speed of rotating field.

Synchronous speedSynchronous speed of the rotor of this motor is same as the rotating magnetic field. It is basically a fixed speed motor because it has only one speed, which is synchronous speed and therefore no intermediate speed is there or in other words it’s in synchronism with the supply frequency. Synchronous speed is given byWhere, f = supply frequency and p = no. of poles



Construction of Synchronous Motor

Normally it's construction is almost similar to that of a 3 phase induction motor, except the fact that the rotor is given DC supply, the reason of which is explained later. Now, let us first go through the basic construction of this type of motor.
From the above picture, it is clear that how this type of motors are designed. The stator is given is given three phase supply and the rotor is given DC supply.

Main Features of Synchronous Motors

1. Synchronous motors are inherently not self starting. They require some external means to bring their speed close to synchronous speed to before they are synchronized.
2. The speed of operation of is in synchronism with the supply frequency and hence for constant supply frequency they behave as constant speed motor irrespective of load condition
3. This motor has the unique characteristics of operating under any electrical power factor. This makes it being used in electrical power factor improvement.

Methods of Starting of Synchronous Motor

1. Motor starting with an external prime Mover: Synchronous motors are mechanically coupled with another motor. It could be either 3 phase induction motor or DC shunt motor. DC excitation is not fed initially. It is rotated at speed very close to its synchronous speed and after that DC excitation is given. After some time when magnetic locking takes place supply to the external motor is cut off.
2. Damper winding: In case, synchronous motor is of salient pole type, additional winding is placed in rotor pole face. Initially when rotor is standstill, relative speed between damper winding and rotating air gap flux in large and an emf is induced in it which produces the required starting torque. As speed approaches synchronous speed, emf and torque is reduced and finally when magnetic locking takes place, torque also reduces to zero. Hence in this case synchronous is first run as three phase induction motor using additional winding and finally it is synchronized with the frequency.

Application of Synchronous Motor

Synchronous motor having no load connected to its shaft is used for power factor improvement. Owing to its characteristics to behave at any electrical power factor, it is used in power system in situations where static capacitors are expensive.

1. Synchronous motor finds application where operating speed is less (around 500 rpm) and high power is required. For power requirement from 35 kW to 2500 KW, the size, weight and cost of the corresponding three phase induction motor is very high. Hence these motors are preferably used. Ex- Reciprocating pump, compressor, rolling mills etc.

Why Synchronous motors are not self starting ?

But if the rotor has got no initial rotation, situation is quite different. North Pole of the Rotor will obviously get attracted by South Pole of RMF, and will start to move in the same direction. But since the rotor has got some inertia, this starting speed will be very low. By this time South pole of RMF will be replaced by a North pole. So it will give repulsive force. This will make the rotor move backward. As a net effect the rotor won’t be able to start.

Making sychronous motor self starting by using damper winding

Synchronous motors are not self starting machines. These machines are made self starting by providing a special winding in the rotor poles, known as damper winding or squirrel cage windings. The damper winding consists of short circuited copper bars embedded in the the face of the rotor polesWhen an ac supply is provided to stator of a 3-phase synchronous motor, stator winding produces rotating magnetic field. Due to the damper winding present in the rotor winding of the synchronous motor, machine starts as induction motor (Induction machine works on the principle of induction. Damper windings in synchronous motor will carryout the same task of induction motor rotor windings. Therefore due to damper windings synchronous motor starts as induction motor and continue to accelerate). The exciter for synchronous motor moves along with rotor. When the motor attains about 95% of the synchronous speed, the rotor windings is connected to exciter terminals and the rotor is magnetically locked by the rotating magnetic field of stator and it runs as a synchronous motor.

Functions of Damper Windings:

• Damper windings helps the synchronous motor to start on its own (self starting machine) by providing starting torque
• By providing damper windings in the rotor of synchronous motor "Hunting of machine"can be suppressed.When there is change in load, excitation or change in other conditions of the systems rotor of the synchronous motor will oscillate to and fro about an equilibrium position. At times these oscillations becomes more violent and resulting in loss of synchronism of the motor and comes to halt

Three phase AC motor

A three phase induction motor runs on a three phase AC supply. 3 phase induction motors are extensively used for various industrial applications because of their following advantages -

• They have very simple and rugged (almost unbreakable) construction
• they are very reliable and having low cost
• they have high efficiency and good power factor
• minimum maintenance required
• 3 phase induction motor is self starting hence extra starting motor or any special starting arrangement is not required

They also have some disadvantages

• speed decreases with increase in load, just like a DC shunt motor
• if speed is to be varied, we have sacrifice some of its efficiency

Construction Of A 3 Phase Induction Motor

Just like any other motor, a 3 phase induction motor also consists of a stator and a rotor. Basically there are two types of 3 phase IM -

1. Squirrel cage induction motor and

 2. Phase Wound induction motor (slip-ring induction motor). Both types have similar constructed rotor, but they differ in construction of rotor. This is explained further

.

Stator

The stator of a 3 phase IM (Induction Motor) is made up with number of stampings, and these stampings are slotted to receive the stator winding. The stator is wound with a 3 phase winding which is fed from a 3 phase supply. It is wound for a defined number of poles, and the number of poles is determined from the required speed. For greater speed, lesser number of poles is used and vice versa. When stator windings are supplied with 3 phase ac supply, they produce alternating flux which revolves with synchronous speed. The synchronous speed is inversely proportional to number of poles (Ns = 120f / P). This revolving or rotating magnetic flux induces current in rotor windings according to Faraday's law of mutual induction.


Rotor
As described earlier, rotor of a 3 phase induction motor can be of either two types, squirrel cage rotorand phase wound rotor (or simply - wound rotor).

Squirrel Cage Rotor

Most of the induction motors (upto 90%) are of squirrel cage type. Squirrel cage type rotor has very simple and almost indestructible construction. This type of rotor consist of a cylindrical laminated core, having parallel slots on it. These parallel slots carry rotor conductors. In this type of rotor, heavy bars of copper, aluminum or alloys are used as rotor conductors instead of wires.
Rotor slots are slightly skewed to achieve following advantages -

1. it reduces locking tendency of the rotor, i.e. the tendency of rotor teeth to remain under stator teeth due to magnetic attraction.

2. increases the effective transformation ratio between stator and rotor

3. increases rotor resistance due to increased length of the rotor conductor

The rotor bars are brazed or electrically welded to short circuiting end rings at both ends. Thus this rotor construction looks like a squirrel cage and hence we call it. The rotor bars are permanently short circuited, hence it is not possible to add any external resistance to armature circuit.

Phase Wound Rotor

Phase wound rotor is wound with 3 phase, double layer, distributed winding. The number of poles of rotor are kept same to the number of poles of the stator. The rotor is always wound 3 phase even if the stator is wound two phase.
The three phase rotor winding is internally star connected. The other three terminals of the winding are taken out via three insulated sleep rings mounted on the shaft and the brushes resting on them. These three brushes are connected to an external star connected rheostat. This arrangement is done to introduce an external resistance in rotor circuit for starting purposes and for changing the speed / torque characteristics.
When motor is running at its rated speed, slip rings are automatically short circuited by means of a metal collar and brushes are lifted above the slip rings to minimize the frictional losses.

Dc motor

A DC motor is any of a class of rotary electrical machines that converts direct current electrical energy into mechanical energy. The most common types rely on the forces produced by magnetic fields. Nearly all types of DC motors have some internal mechanism, either electromechanical or electronic, to periodically change the direction of current flow in part of the motor.
DC motors were the first type widely used, since they could be powered from existing direct-current lighting power distribution systems. A DC motor's speed can be controlled over a wide range, using either a variable supply voltage or by changing the strength of current in its field windings. Small DC motors are used in tools, toys, and appliances. The universal motor can operate on direct current but is a lightweight motor used for portable power tools and appliances. Larger DC motors are used in propulsion of electric vehicles, elevator and hoists, or in drives for steel rolling mills. The advent of power electronics has made replacement of DC motors with AC motors possible in many applications.




Types of DC motors

Brushed dc motor

The brushed DC electric motor generates torque directly from DC power supplied to the motor by using internal commutation, stationary magnets (permanent or electromagnets), and rotating electromagnets.

Advantages of a brushed DC motor include low initial cost, high reliability, and simple control of motor speed. Disadvantages are high maintenance and low life-span for high intensity uses. Maintenance involves regularly replacing the carbon brushes and springs which carry the electric current, as well as cleaning or replacing the commutator. These components are necessary for transferring electrical power from outside the motor to the spinning wire windings of the rotor inside the motor.

Brushes are usually made of graphite or carbon, sometimes with added dispersed copper to improve conductivity. In use, the soft brush material wears to fit the diameter of the commutator, and continues to wear. A brush holder has a spring to maintain pressure on the brush as it shortens. For brushes intended to carry more than an ampere or two, a flying lead will be molded into the brush and connected to the motor terminals. Very small brushes may rely on sliding contact with a metal brush holder to carry current into the brush, or may rely on a contact spring pressing on the end of the brush. Very small short-lived motors, such as are used in toys, may be made of a folded strip of metal that contacts the commutator.

Brushless

Typical brushless DC motors use one or more permanent magnets in the rotor and electromagnets on the motor housing for the stator. A motor controller converts DC to AC. This design is mechanically simpler than that of brushed motors because it eliminates the complication of transferring power from outside the motor to the spinning rotor. The motor controller can sense the rotor's position via Hall effect sensors or similar devices and can precisely control the timing, phase, etc., of the current in the rotor coils to optimize torque, conserve power, regulate speed, and even apply some braking. Advantages of brushless motors include long life span, little or no maintenance, and high efficiency. Disadvantages include high initial cost, and more complicated motor speed controllers. Some such brushless motors are sometimes referred to as "synchronous motors" although they have no external power supply to be synchronized with, as would be the case with normal AC synchronous motors.

Each DC machine can act as a generator or a motor. Hence, this classification is valid for both: DC generators and DC motors. DC machines are usually classified on the basis of their field excitation method. This makes two broad categories of dc machines; (i) Separately excited and (ii) Self-excited.

• Separately excited: In separately excited dc machines, the field winding is supplied from a separate power source. That means the field winding is electrically separated from the armature circuit. Separately excited DC generators are not commonly used because they are relatively expensive due to the requirement of an additional power source or circuitry. They are used in laboratories for research work, for accurate speed control of DC motors with Ward-Leonard system and in few other applications where self-excited DC generators are unsatisfactory. In this type, the stator field flux may also be provided with the help of permanent magnets (such as in the case of a permanent magnet DC motors). A PMDC motor may be used in a small toy car.
• Self-excited: In this type, field winding and armature winding are interconnected in various ways to achieve a wide range of performance characteristics (for example, field winding in series or parallel with the armature winding).
  In self-excited type of DC generator, the field winding is energized by the current produced by themselves. A small amount of flux is always present in the poles due to the residual magnetism. So, initially, current induces in the armature conductors of a dc generator only due to the residual magnetism. The field flux gradually increases as the induced current starts flowing through the field winding.

  Self-excited machines can be further classified as –
• Series wound – In this type, field winding is connected in series with the armature winding. Therefore, the field winding carries whole load current (armature current). That is why series winding is designed with few turns of thick wire and the resistance is kept very low (about 0.5 Ohm).
• Shunt wound – Here, field winding is connected in parallel with the armature winding. Hence, the full voltage is applied across the field winding. Shunt winding is made with a large number of turns and the resistance is kept very high (about 100 Ohm). It takes only small current which is less than 5% of the rated armature current.
• Compound wound – In this type, there are two sets of field winding. One is connected in series and the other is connected in parallel with the armature winding. Compound wound machines are further divided as -
• Short shunt – field winding is connected in parallel with only the armature winding
• Long shunt – field winding is connected in parallel with the combination of series field winding and armature winding

  Special type of motors

Servo motor

The servo motor is most commonly used for high technology devices in the industrial application like automation technology. It is a self contained electrical device, that rotate parts of a machine with high efficiency and great precision. The output shaft of this motor can be moved to a particular angle. Servo motors are mainly used in home electronics, toys, cars, airplanes, etc.This article discusses about what is a servo motor, servo motor working, servo motor types and its applications.

Servo Motor

Types of Servo Motor

Servo motors are classified into different types based on their application, such as AC servo motor, DC servo motor, brushless DC servo motor, positional rotation, continuous rotation and linear servo motor etc. Typical servo motors comprise of three wires namely, power control and ground. The shape and size of these motors depend on their applications. RC servo motor is the most common type of servo motor used in hobby applications, robotics due to their simplicity, affordability and reliability of control by microprocessors.

DC Servo Motor

The motor which is used as a DC servo motor generally have a separate DC source in the field of winding & armature winding. The control can be archived either by controlling the armature current or field current. Field control includes some particular advantages over armature control. In the same way armature control includes some advantages over field control. Based on the applications the control should be applied to the DC servo motor. DC servo motor provides very accurate and also fast respond to start or stop command signals due to the low armature inductive reactance. DC servo motors are used in similar equipments and computerized numerically controlled machines.

DC Servo Motor

AC Servo Motor

AC servo motor is an AC motor that includes encoder is used with controllers for giving closed loop control and feedback. This motor can be placed to high accuracy and also controlled precisely as compulsory for the applications. Frequently these motors have higher designs of tolerance or better bearings and some simple designs also use higher voltages in order to accomplish greater torque. Applications of an AC motormainly involve in automation, robotics, CNC machinery, and other applications a high level of precision and needful versatility.

AC Servo Motor

Positional Rotation Servo Motor

Positional rotation servo motor is a most common type of servo motor. The shaft’s o/p rotates in about 180o. It includes physical stops located in the gear mechanism to stop turning outside these limits to guard the rotation sensor. These common servos involve in radio controlled water, radio controlled cars, aircraft, robots, toys and many other applications.

Continuous Rotation Servo Motor

Continuous rotation servo motor is quite related to the common positional rotation servo motor, but it can go in any direction indefinitely. The control signal, rather than set the static position of the servo, is understood as the speed and direction of rotation. The range of potential commands sources the servo to rotate clockwise or anticlockwise as preferred, at changing speed, depending on the command signal. This type of motor is used in a radar dish if you are riding one on a robot or you can use one as a drive motor on a mobile robot.

Continuous Rotation Servo Motor

Linear Servo Motor

Linear servo motor is also similar the positional rotation servo motor is discussed above, but with an extra gears to alter the o/p from circular to back-and-forth. These servo motors are not simple to find, but sometimes you can find them at hobby stores where they are used as actuators in higher model airplanes.

Linear Servo Motor

Servo Motor Working

A unique design for servo motors are proposed in controlling the robotics and for control applications. They are basically used to adjust the speed control at high torques and accurate positioning. Parts required are motor position sensor and a highly developed controller. These motors can be categorized according the servo motor controlled by servomechanism. If DC motor is controlled using this mechanism, then it is named as a DC servo motor. Servo motors are available in power ratings from fraction of a watt to 100 watts.The rotor of a servo motor is designed longer in length and smaller in diameter so that it has low inertia. To know more about this, please follow the link: Servo motor working principle and interfacing with 8051 microcontroller

Servo Motor Working

Applications of Servo Motor

The servo motor is small and efficient, but serious to use in some applications like precise position control.This motor is controlled by a pulse width modulator signal. The applications of servo motors mainly involve in computers, robotics, toys, CD/DVD players, etc. These motors are extensively used in those applications where a particular task is to be done frequently in an exact manner.

Servo Motor in Packaging Machine

• The servo motor is used in robotics to activate movements, giving the arm to its precise angle.
• The Servo motor is used to start, move and stop conveyor belts carrying the product along with many stages. For instance, product labeling, bottling and packaging
• The servo motor is built into the camera to correct a lens of the camera to improve out of focus images.
• The servo motor is used in robotic vehicle to control the robot wheels, producing plenty torque to move, start and stop the vehicle and control its speed.
• The servo motor is used in solar tracking system to correct the angle of the panel so that each solar panel stays to face the sun
  The Servo motor is used in metal forming and cutting machines to provide specific motion control for milling machines
• The Servo motor is used in Textiles to control spinning and weaving machines, knitting machines and looms
• The Servo motor is used in automatic door openers to control the door in public places like supermarkets, hospitals and theatres

Thus, this is all about servo motor working, types and its applications. We hope that you have got a better understanding of this concept. Furthermore, any doubts regarding this article, or electrical and electronics projects please give your valuable suggestions by commenting in the comment section below.Here is a question for you, What is the main function of servo motor?

Stepper motor

A stepper motor or step motor or stepping motor is a brushless DC electric motor that divides a full rotation into a number of equal steps. The motor's position can then be commanded to move and hold at one of these steps without any position sensor for feedback (an open-loop controller), as long as the motor is carefully sized to the application in respect to torque and speed.

Switched reluctance motors are very large stepping motors with a reduced pole count, and generally are closed-loop commutated.

Working

Working of Permanent Magnet Stepper Motor: Theoperation of this motor works on the principle that unlike poles attract each other and like poles repel each other. When the stator windings are excited with a DC supply, it produces magnetic flux and establishes the North and South poles

Types of Stepper Motor:

There are three main types of stepper motors, they are:

1. Permanent magnet stepper
2. Hybrid synchronous stepper
3. Variable reluctance stepper

Permanent Magnet Stepper Motor: Permanent magnet motors use a permanent magnet (PM) in the rotor and operate on the attraction or repulsion between the rotor PM and the stator electromagnets.

Variable Reluctance Stepper Motor: Variable reluctance (VR) motors have a plain iron rotor and operate based on the principle that minimum reluctance occurs with minimum gap, hence the rotor points are attracted toward the stator magnet poles.

Hybrid Synchronous Stepper Motor: Hybrid stepper motors are named because they use a combination of permanent magnet (PM) and variable reluctance (VR) techniques to achieve maximum power in a small package size.

Advantages of Stepper Motor:

1. The rotation angle of the motor is proportional to the input pulse.
2. The motor has full torque at standstill.
3. Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3 – 5% of a step and this error is non cumulative from one step to the next.
4. Excellent response to starting, stopping and reversing.
5. Very reliable since there are no contact brushes in the motor. Therefore the life of the motor is simply dependant on the life of the bearing.
6. The motors response to digital input pulses provides open-loop control, making the motor simpler and less costly to control.
7. It is possible to achieve very low speed synchronous rotation with a load that is directly coupled to the shaft.
8. A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input pulses.

Applications:

1. Industrial Machines – Stepper motors are used in automotive gauges and machine tooling automated production equipments.
2. Security – new surveillance products for the security industry.
3. Medical – Stepper motors are used inside medical scanners, samplers, and also found inside digital dental photography, fluid pumps, respirators and blood analysis machinery.
4. Consumer Electronics – Stepper motors in cameras for automatic digital camera focus and zoom functions.

And also have business machines applications, computer peripherals applications.

Operation of Stepper Motor:

Stepper motors operate differently from DC brush motors, which rotate when voltage is applied to their terminals. Stepper motors, on the other hand, effectively have multiple toothed electromagnets arranged around a central gear-shaped piece of iron. The electromagnets are energized by an external control circuit, for example a microcontroller.

To make the motor shaft turn, first one electromagnet is given power, which makes the gear’s teeth magnetically attracted to the electromagnet’s teeth. The point when the gear’s teeth are thus aligned to the first electromagnet, they are slightly offset from the next electromagnet. So when the next electromagnet is turned ON and the first is turned OFF, the gear rotates slightly to align with the next one and from there the process is repeated. Each of those slight rotations is called a step, with an integer number of steps making a full rotation. In that way, the motor can be turned by a precise. Stepper motor doesn’t rotate continuously, they rotate in steps. There are 4 coils with 90o angle between each other fixed on the stator. The stepper motor connections are determined by the way the coils are interconnected.In stepper motor, the coils are not connected together. The motor has 90o rotation step with the coils being energized in a cyclic order, determining the shaft rotation direction. The working of this motor is shown by operating the switch. The coils are activated in series in 1 sec intervals. The shaft rotates 90o each time the next coil is activated. Its low speed torque will vary directly with current.

Stepper Motor Control by Varying Clock Pulses

Stepper motor control circuit is a simple and low-cost circuit, mainly used in low power applications. The circuit is shown in figure, which consist 555 timers IC as stable multi-vibrator. The frequency is calculated by using below given relationship:

Frequency = 1/T = 1.45/(RA + 2RB)C Where RA = RB = R2 = R3 = 4.7 kilo-ohm and C = C2 = 100 µF.

The output of timer is used as clock for two 7474 dual ‘D’ flip-flops (U4 and U3) configured as a ring counter. When power is initially switched on, only the first flip-flop is set (i.e. Q output at pin 5 of U3 will be at logic ‘1’) and the other three flip-flops are reset (i.e. output of Q is at logic 0). On receipt of a clock pulse, the logic ‘1’ output of the first flip-flop gets shifted to the second flip-flop (pin 9 of U3). Thus logic 1 output keeps shifting in a circular manner with every clock pulse. Q outputs of all the four flip-flops are amplified by Darling-ton transistor arrays inside ULN2003 (U2) and connected to the stepper motor windings orange ,brown, yellow, black to 16, 15 ,14, 13 of ULN2003 and the red to +ve supply.

The common point of the winding is connected to +12V DC supply, which is also connected to pin 9 of ULN2003. The color code used for the windings is may vary form make to make. When the power is switched on, the control signal connected to SET pin of the first flip-flop and CLR pins of the other three flip-flops goes active ‘low’ (because of the power-on-reset circuit formed by R1-C1 combination) to set the first flip-flop and reset the remaining three flip-flops. On reset, Q1 of IC3 goes ‘high’ while all other Q outputs go ‘low’. External reset can be activated by pressing the reset switch. By pressing the reset switch, you can stop the stepper motor. The motor again starts rotating in the same direction by releasing the reset switch.

Universal motor

A universal motor is a special type of motor which is designed to run on either DC or single phase AC supply. These motors are generally series wound (armature and field winding are in series), and hence produce high starting torque (See characteristics of DC motors here). That is why, universal motorsgenerally comes built into the device they are meant to drive. Most of the universal motors are designed to  operate at higher speeds, exceeding 3500 RPM. They run at lower speed on AC supply than they run on DC supply of same voltage, due to the reactance voltage drop which is present in AC and not in DC.
There are two basic types of universal motor : (i)compensated type and (ii) uncompensated type

Construction Of Universal Motor

Construction of a universal motor is very similar to the construction of a DC machine. It consists of a stator on which field poles are mounted. Field coils are wound on the field poles.
However, the whole magnetic path (stator field circuit and also armature) is laminated. Lamination is necessary to minimize the eddy currents which induce while operating on AC.
The rotary armature is of wound type having straight or skewed slots and commutator with brushes resting on it. The commutation on AC is poorer than that for DC. because of the current induced in the armature coils. For that reason brushes used are having high resistance.

Working Of Universal Motor

A universal motor works on either DC or single phase AC supply. When the universal motor is fed with a DC supply, it works as a DC series motor. (see working of a DC series motor here). When current flows in the field winding, it produces an electromagnetic field. The same current also flows from the armature conductors. When a current carrying conductor is placed in an electromagnetic field, it experiences a mechanical force. Due to this mechanical force, or torque, the rotor starts to rotate. The direction of this force is given by Fleming's left hand rule.

When fed with AC supply, it still produces unidirectional torque. Because, armature winding and field winding are connected in series, they are in same phase. Hence, as polarity of AC changes periodically, the direction of current in armature and field winding reverses at the same time.
Thus, direction of magnetic field and the direction of armature current reverses in such a way that the direction of force experienced by armature conductors remains same. Thus, regardless of AC or DC supply, universal motor works on the same principle that DC series motor works.

Speed/Load Characteristics

Speed/load characteristics of a universal motor is similar to that of DC series motor. The speed of a universal motor is low at full load and very high at no load. Usually, gears trains are used to get the required speed on required load. The speed/load characteristics are (for both AC as well as DC supply) are shown in the figure.

Applications Of Universal Motor

• Universal motors find their use in various home appliances like vacuum cleaners, drink and food mixers, domestic sewing machine etc.
• The higher rating universal motors are used in portable drills, blenders etc.
